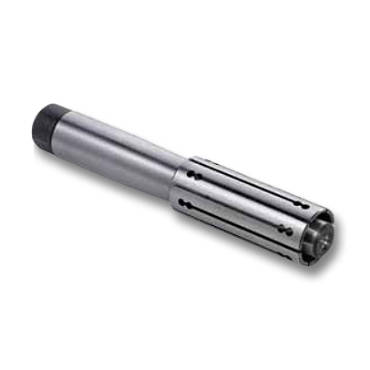

STANDARD EXPANDING MANDRELS

Mandrins expansibles standards Tobler TEP

TEP

EXPANDING MANDRELS BETWEEN CENTERS MOUNTING

Accuracy: Runout ≤ 10µ
Quick change of the sleeve – Easy assembly. The most commonly used sizes of TEP mandrel have been brought together in a set of two types, which are provided in a robust toolbox to protect them.

The two types of TEP arbor and expanding sleeve set can accommodate workpiece diameters from 12 to 55 mm

APPLICATION

  • Turning, grinding, and inspection

TECHNICAL FEATURES

  • TEP-A – Workpieces range: 12 – 25 mm
  • TEP-B – Workpieces range: 25 – 55 mm
  • Actuation: Manual
  • To cover the whole diameter range, sleeves TEP280-8 and TEP380-9 will be required or for occasional use only, use the TEP250-8 and TEP350-9 sleeves fully expanded.

ADVANTAGES
It is take for granted that every workstation where inspection and grinding takes place has a set of angle gauges and other measuring equipments but it should be equally obvious also to equip each such station with sets of TEP mandrels.
Their versatility, reliability and precision make them an indispensible tool for inspection and grinding operations between centers.

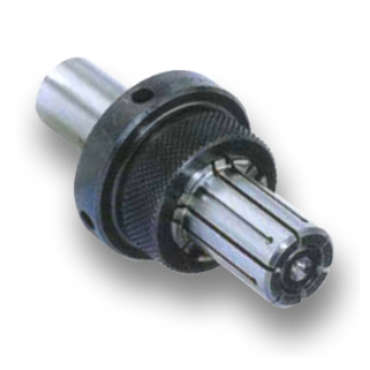

Mandrins expansibles standards Mandrins expansibles standards Tobler TEPN

TEPN

EXPANDING MANDRELS BETWEEN CENTERS MOUNTING

Accuracy: Runout ≤ 10µ
Quick change of the sleeve – Easy assembly. TEPN mandrels are designed to clamp workpieces in between centrers with a flat surface on the arbor for a driving system.

APPLICATION

  • Turning, grinding, shaving and inspection

TECHNICAL FEATURES

  • Workpieces range: 5,5 mm – 79,7 mm
  • Expansibility: 0,5 – 1 mm
  • Attachment: In between centers or by chuck
  • Actuation: Manual
  • The workpiece is clamped by tightening the sleeve with the knurled ring. The movement of the sleeve ensures that the workpiece is clamped tightly in the axis position on the workstop.

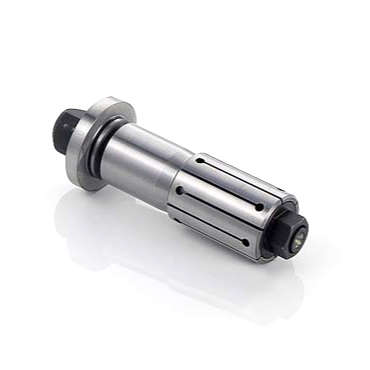

Mandrins expansibles standards Tobler TMEP

TMEP

MANDRIN EXPANSIBLE MONTAGE ENTRE-POINTES

Précision : Concentricité ≤ 10µ
Démontage rapide de la douille lors du changement de campagne

  • Plage de diamètres de pièces: 8 – 235 mm
  • Expansibilité : 1,5 – 5 mm
  • Fixation : Entre-pointes
  • Fonctionnement : Manuel
  • Monter la pièce sur le milieu de la douille, déplacer l’ensemble pièce et douille jusqu’à un léger coincement.
  • Frapper l’arbre conique côté gros Ø pour un coincement plus important
  • Frapper l’arbre sur le petit Ø en tenant l’ensemble pièce/douille dans la main

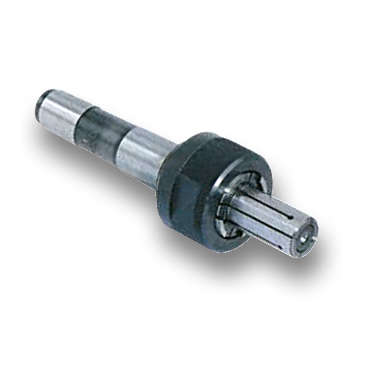

Mandrin expansible standard Tobler TMCMN

TMCMN

EXPANDING MANDRELS MORSE TAPER MOUNTING

Accuracy : Runout ≤ 10µ
Quick change of the sleeve – Easy assembly. The TMCMN is also used to clamp workpieces with blind bores or on short section of the workpiece

APPLICATION

  • Turning, milling, grinding and inspection

TECHNICAL FEATURES

  • Workpieces range: 5,5 – 79,7 mm
  • Expansibility: 0,5 – 1 mm
  • Attachment: Morse taper
  • Actuation: Manual
  • This mandrel has a built-in workpiece stop which positions the workpiece axially.

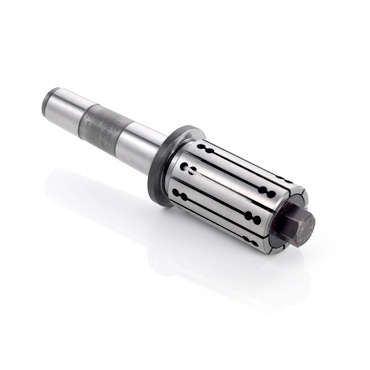

Mandrin expansible standard Tobler TMCM

TMCM

EXPANDING MANDRELS MORSE TAPER MOUNTING

Accuracy: Runout ≤ 10µ
Quick change of the sleeve – Easy assembly. TMCM manual expanding mandrels are designed for spindle Morse taper mounting.

The workpiece is positioned axially either by a locator or a spacer.

APPLICATION

Turning, milling, grinding and inspection.

TECHNICAL FEATURES

  • Workpieces range: 14,7 – 82,7 mm
  • Expansibility: 1 – 2 mm
  • Attachment: Morse taper
  • Actuation: Manual
  • Screw the driving screw with a key

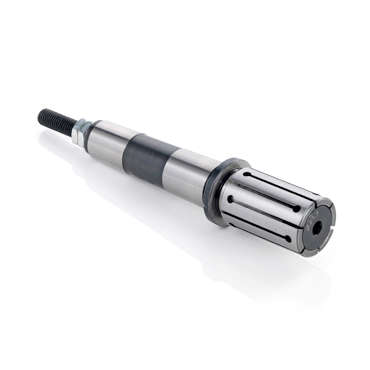

Mandrin expansible standard Tobler TMCMT

TMCMT

EXPANDING MANDRELS MORSE TAPER MOUNTING

Accuracy : Runout ≤ 10µ
Quick change of the sleeve – Easy assembly. TMCMT is an automatic expanding mandrels are designed for spindle Morse taper mounting.

The workpiece is positioned axially either by a locator or a spacer.

APPLICATION

  • Turning, milling, grinding and inspection

TECHNICAL FEATURES

  • Workpieces range: 14,7 – 82,7 mm
  • Expansibility: 1 – 2 mm
  • Attachment: Morse taper
  • Actuation: Automatic
  • The drawbolt ensures automatic clamping and unclamping, saving time during workpieces loading.

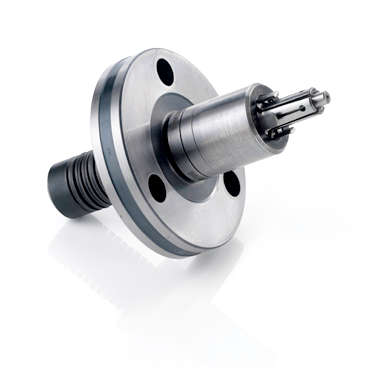

Mandrin expansible standard Tobler TMTPN

TMTPN

EXPANDING MANDRELS PULL-DOWN SLEEVES

Accuracy : Runout ≤ 10µ
Quick change of the sleeve – Easy assembly. The TMTPN is used to clamp workpieces with blind bores or on short section of the workpiece.

APPLICATION

  • Turning, grinding

TECHNICAL FEATURES

  • Workpieces range: 5,5 – 79,7 mm
  • Expansibility: 0,5 – 1 mm
  • Attachment: Spindle nose
  • Actuation: Automatic
  • TMTN-1 to TMTPN-4: Clamping by spring washers and unclamping by cylinder
  • TMTPN-5: Clamping and unclamping by cylinder
